| Round duct system
Segmented Ventilation Saddle
Product Description
A segmented ventilation saddle (take-off) is a universal element used for fabricating T-pieces and creating branches in existing ventilation systems. It allows connecting a round duct (spiral or flexible) to a main duct of any diameter.
Thanks to in-house production, we are not limited by standard molds and can manufacture a take-off of absolutely any size to meet the specific requirements of your project.
Key Features and Options
- Universal: Allows creating a tee from any straight pipe directly on-site or in the workshop.
- Cost-effective: The design with a short mounting flange (~5-10 mm) ensures minimal material consumption, making the product very affordable.
- Any Size: The product is manufactured by cutting metal, so any combination of main and branch diameters is possible.
- Airtightness Options: Manufacturing is possible both with an EPDM rubber gasket and without it.
Manufacturing Capabilities and Reference Dimensions

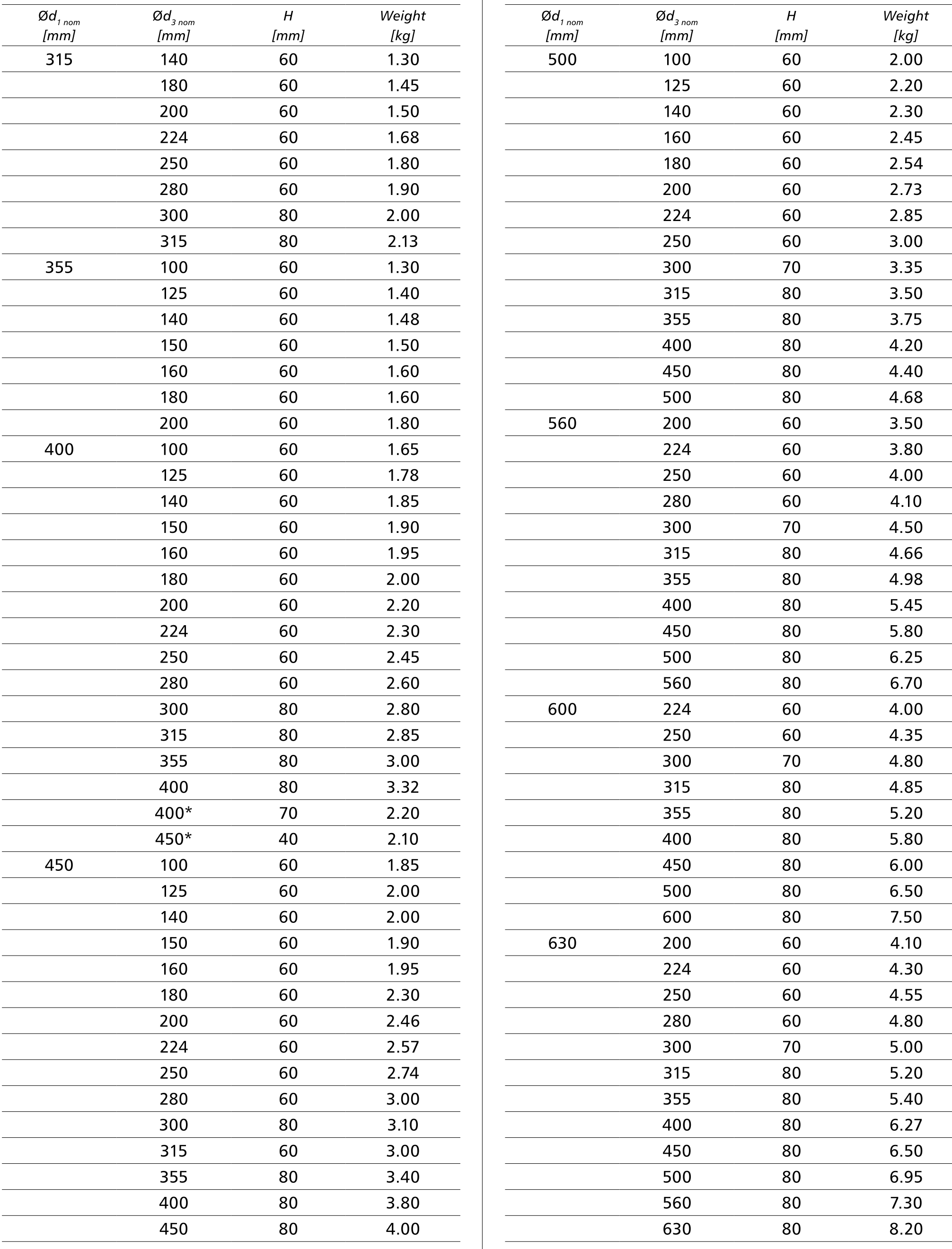

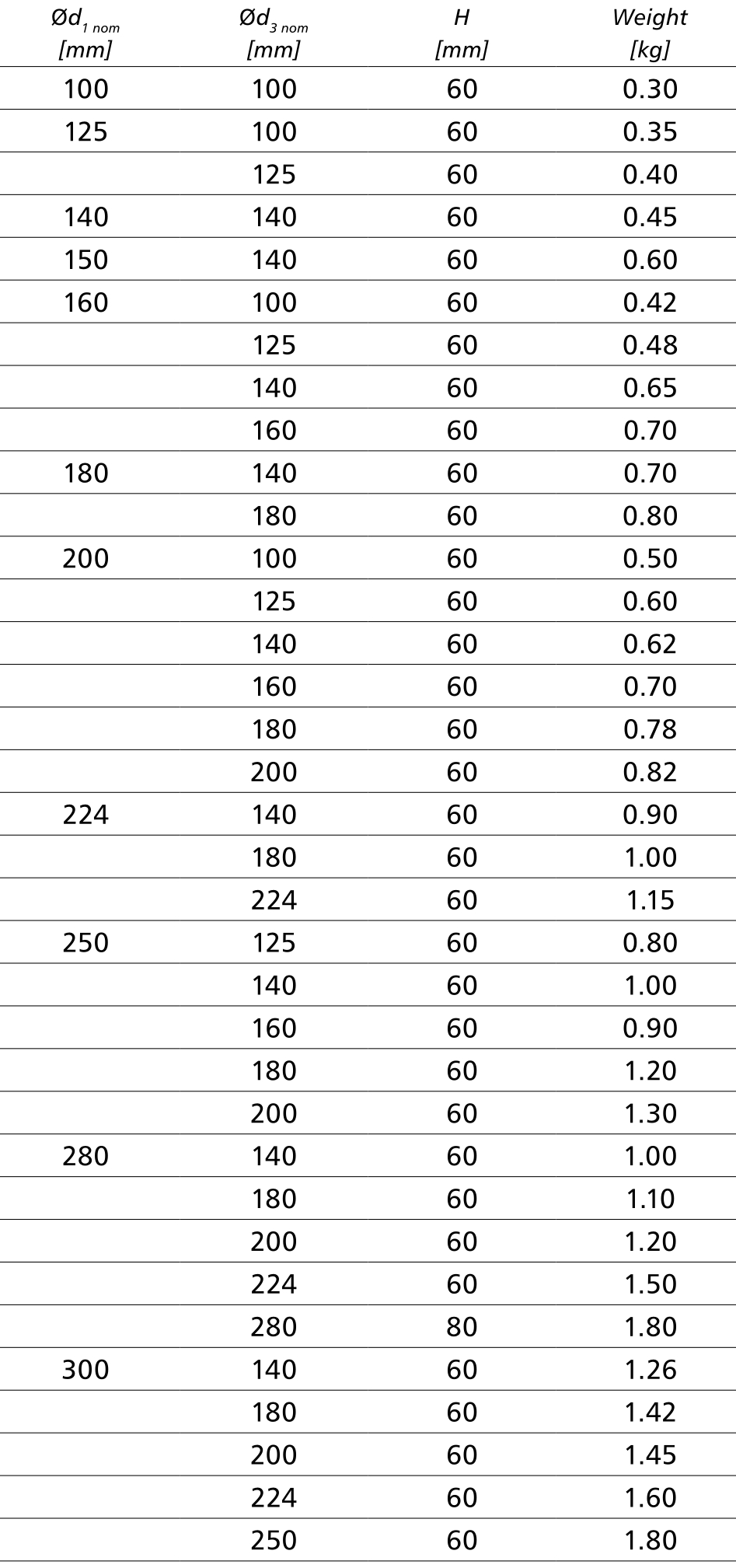

We produce segmented saddles on order in a wide range of sizes. Below are approximate parameters for standard diameters.

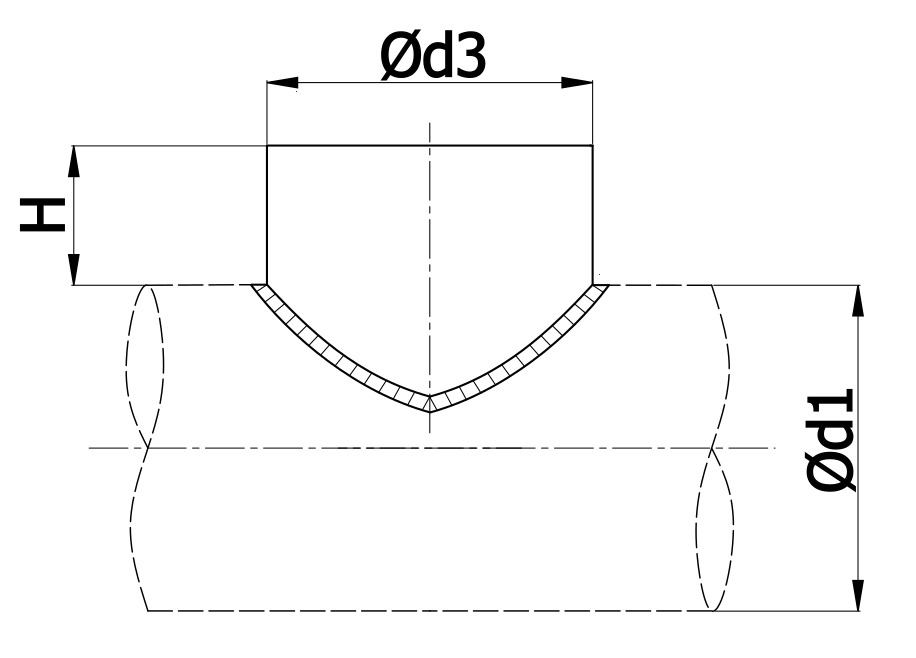

Segmented Saddle Parameters
| Branch Diameter d3 (mm) |
Main Duct Diameter Range d1 (mm) |
Height H (mm) |
Weight (kg) |
Article No. |
| 100 | 100–500 | 60–80 | 0.30–2.00 | VASSEA100 |
| 125 | 125–500 | 60–80 | 0.35–2.20 | VASSEA125 |
| 140 | 140–500 | 60–80 | 0.40–2.30 | VASSEA140 |
| 150 | 150–450 | 60–80 | 0.60–1.95 | VASSEA150 |
| 160 | 160–500 | 60–80 | 0.42–2.45 | VASSEA160 |
| 180 | 180–500 | 60–80 | 0.70–2.54 | VASSEA180 |
| 200 | 200–630 | 60–80 | 0.50–2.73 | VASSEA200 |
| 224 | 224–630 | 60–80 | 0.90–3.80 | VASSEA224 |
| 250 | 250–630 | 60–80 | 0.80–4.00 | VASSEA250 |
| 280 | 280–630 | 60–80 | 1.00–4.10 | VASSEA280 |
| 300 | 300–630 | 60–80 | 1.26–4.66 | VASSEA300 |
| 315 | 315–630 | 60–80 | 1.30–4.85 | VASSEA315 |
| 355 | 355–630 | 60–80 | 1.40–4.98 | VASSEA355 |
| 400 | 400–630 | 80 | 1.65–5.80 | VASSEA400 |
| 450 | 450–630 | 80 | 1.85–6.50 | VASSEA450 |
| 500 | 500–630 | 80 | 2.00–6.95 | VASSEA500 |
| 560 | 560–630 | 80 | 3.50–7.30 | VASSEA560 |
| 600 | 600 | 80 | 4.00–7.50 | VASSEA600 |
| 630 | 630 | 80 | 4.10–8.20 | VASSEA630 |
* The indicated dimensions and weights are approximate and may vary depending on the specific order.
Material and Thickness:
- Material: Galvanized steel DX51+Z275. Stainless steel and powder coating (according to RAL or RR catalogs) are available on request.
- Thickness: From 0.5 to 0.9 mm (depending on diameter).
- Certification: The products comply with CE, EN 1505:2000 and EN 1506:2007 standards.
Application and Installation Tips
- Preparation: A hole is cut in the main duct using a template.
- Installation: Due to the short flange, installation requires care. The saddle is pressed tightly against the pipe.
- Fastening: It is recommended to secure the joint using self-tapping screws or rivets.
- Sealing: The joint must be thoroughly sealed with silicone or reinforced aluminum tape to prevent air leaks.
Availability and Ordering
- Availability: This product is manufactured on custom order.
- Capabilities: We can manufacture a saddle for any pipe diameter you need.
|
|
