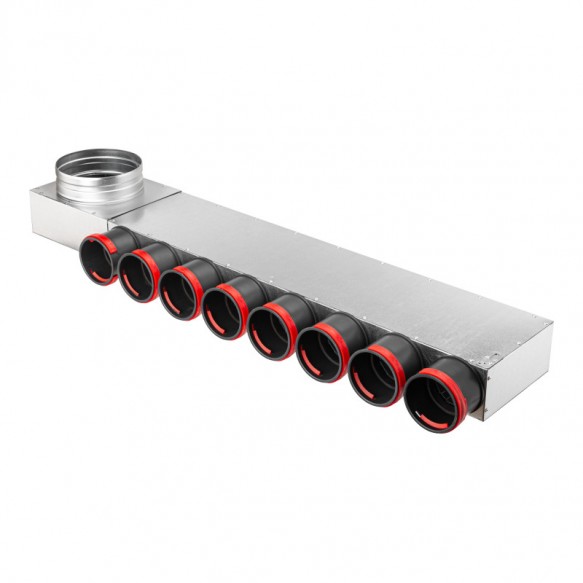

PK Asymmetric Distribution Manifold with 8 Outlets and Plastic Connectors

The PK series asymmetric 8-outlet distribution manifold is designed for complex mechanical ventilation systems. Due to its single-sided outlet arrangement and elongated housing, the unit is ideal for installation in narrow corridors, wall niches, and ceiling voids where precise and orderly duct routing is required.

The core of the product is a galvanized steel housing, resistant to corrosion and deformation. The asymmetric placement of the main inlet expands installation options, while the polymer connectors ensure secure fixation of flexible ducts and high system airtightness.

For applications requiring protection against condensation and noise reduction, an insulated version (index I) is available. It features an internal layer of synthetic rubber that does not absorb moisture, damps acoustic vibrations, and meets strict hygienic standards.

Design Features:

• Installation Adaptability: The main inlet is offset from the center. This allows the manifold to be oriented for either left-hand or right-hand air supply simply by rotating the housing 180 degrees.
• Plastic Connectors: Equipped with an integrated end seal that guarantees a tight fit for ducts without the need for additional sealing tapes.
• Mechanical Fixation: A system of built-in latches on each connector securely locks the flexible duct, preventing disconnection during floor slab pouring or under air pressure.
• Compact Design: The arrangement of eight outlets in a single row on the side panel maintains a minimum overall unit height (85 mm).
• Insulation: The rubber layer in 'I' index models provides long-lasting protection against noise and condensation without releasing dust into the airflow.
• Mounting Elements: The steel housing is equipped with mounting lugs for secure fixation of the device to building structures.

Technical Specifications:

• Housing Material: Galvanized steel
• Connector Material: High-impact plastic
• Insulation Material: Synthetic rubber (for 'I' index models)
• Number of Duct Outlets: 8
• Outlet Layout: Single-sided (8 in a row)
• Inlet Features: Asymmetric (offset from center)
• Duct Connection Diameter (d2): 75 mm
• Main Connection Diameter (d1): 160 mm or 200 mm
• Overall Dimensions (LxWxH): 961 x 183 x 85 mm (for d1=160 mm), 1001 x 223 x 85 mm (for d1=200 mm)
• Compatibility: 75 mm round flexible ducts
