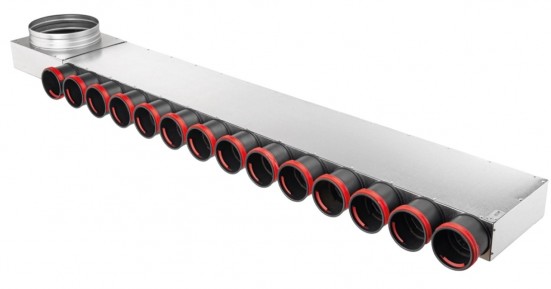

PK Asymmetric Distribution Manifold with 14 Outlets and Plastic Connectors

The PK series asymmetric distribution manifold with 14 outlets is designed for large-scale projects with complex ventilation networks. Its elongated design with all nozzles positioned on one side is ideal for concealed installation in long niches or narrow ceiling voids, ensuring orderly and compact duct routing.

The casing is made of galvanized steel, providing high rigidity and protection against deformation. The asymmetric offset of the main inlet expands design possibilities and flexibility during installation. The connection of flexible ducts is made via high-impact plastic connectors, which facilitates quick assembly and guarantees joint airtightness.

To reduce heat loss and acoustic noise, insulated versions are available (marked with index I), featuring an internal layer of synthetic rubber. This material is moisture-resistant and meets strict hygiene requirements, preventing condensation and bacterial growth.

Design features:

• Installation flexibility: The offset main inlet allows for left or right air supply by simply rotating the casing 180 degrees.
• Plastic connectors: Equipped with end seals that provide a high airtightness class without the need for additional adhesive tapes.
• Mechanical fixation: Built-in latches securely hold the flexible duct, preventing disconnection during aerodynamic loads or during the floor pouring process.
• Compact form factor: The single-sided arrangement of 14 outlets allows the unit to maintain a minimum height (85 mm) even with a length exceeding 1.5 meters.
• Insulation: Insulated models use rubber insulation that does not accumulate moisture and effectively dampens vibrations.
• Mounting elements: The casing is equipped with standard brackets for rigid fixation to building structures.

Technical specifications:

• Casing material: Galvanized steel
• Nozzle material: High-impact plastic
• Insulation material: Synthetic rubber (in versions with index I)
• Number of outlets: 14
• Outlet arrangement: Single-sided (14 in a row)
• Inlet type: Asymmetric (offset from the center)
• Duct connection diameter (d2): 75 mm
• Main connection diameter (d1): 160 mm or 200 mm
• Overall dimensions (LxWxH): 1531 x 183 x 85 mm (for d1=160 mm), 1571 x 223 x 85 mm (for d1=200 mm)
• Compatibility: Flexible circular ducts with a diameter of 75 mm
