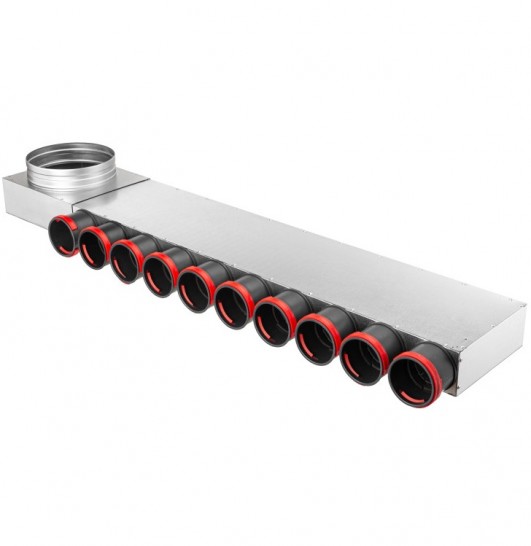

PK Asymmetric Distribution Manifold with 10 Outlets and Plastic Connectors

The PK series asymmetric 10-outlet distribution manifold is designed for large-scale projects to manage air distribution in extensive ventilation networks. The elongated design with a single-sided arrangement of all outlets is optimal for concealed installation in long niches or narrow ceiling voids, ensuring orderly duct routing.

The housing is constructed from galvanized steel, providing protection against deformation. The asymmetric offset of the main inlet expands design possibilities. Flexible duct connection is facilitated through high-impact plastic connectors, which promote fast assembly and guarantee airtight joints.

To reduce heat loss and acoustic noise, insulated versions (index I) are available, featuring an internal layer of synthetic rubber. This material is moisture-resistant and meets strict hygienic requirements, preventing condensation and the growth of bacteria.

Design Features:

• Installation Adaptability: The offset main inlet allows the device to be oriented for either left-hand or right-hand air supply by rotating the housing 180 degrees.
• Plastic Connectors: Equipped with an end seal that ensures a high airtightness class without the need for additional sealing tapes.
• Mechanical Fixation: Integrated latches securely hold the flexible duct, preventing disconnection under aerodynamic loads or during floor slab pouring.
• Compact Form Factor: The single-sided arrangement of ten outlets maintains a minimum unit height (85 mm) despite the significant manifold length (over one meter).
• Insulation: Insulated models utilize rubber insulation, which does not accumulate moisture and effectively damps vibrations.
• Mounting Elements: The housing is equipped with standard lugs for rigid fixation of the device to structural foundations.

Technical Specifications:

• Housing Material: Galvanized steel
• Connector Material: High-impact plastic
• Insulation Material: Synthetic rubber (for 'I' index models)
• Number of Duct Outlets: 10
• Outlet Layout: Single-sided (10 in a row)
• Inlet Features: Asymmetric (offset from center)
• Duct Connection Diameter (d2): 75 mm
• Main Connection Diameter (d1): 160 mm or 200 mm
• Overall Dimensions (LxWxH): 1151 x 183 x 85 mm (for d1=160 mm), 1191 x 223 x 85 mm (for d1=200 mm)
• Compatibility: 75 mm round flexible ducts
