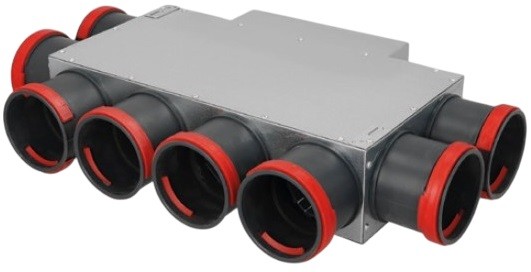

PK Distribution Manifold with Flat Inlet, 8 Outlets and Plastic Connectors
The PK series distribution manifold with a rectangular inlet and 8 outlets is designed for integration into ventilation systems with restricted installation space. The use of a flat main connection (measuring 200x50 mm or 200x90 mm) allows for the minimization of the ventilation hub's height. This model is an optimal solution for concealed routing in concrete floor screeds or suspended ceilings with minimal clearance.
The manifold housing is constructed from galvanized steel, providing structural rigidity and resistance to mechanical loads. The connectors are made of high-impact plastic. The use of polymer materials reduces the unit's weight, eliminates the risk of duct damage on sharp metal edges, and simplifies the assembly process.
To prevent condensation and reduce aerodynamic noise, an insulated modification (index I) is available. The internal surface of the device is covered with a layer of synthetic rubber. This material meets sanitary standards, does not absorb moisture, and does not release microparticles into the transported airflow.
