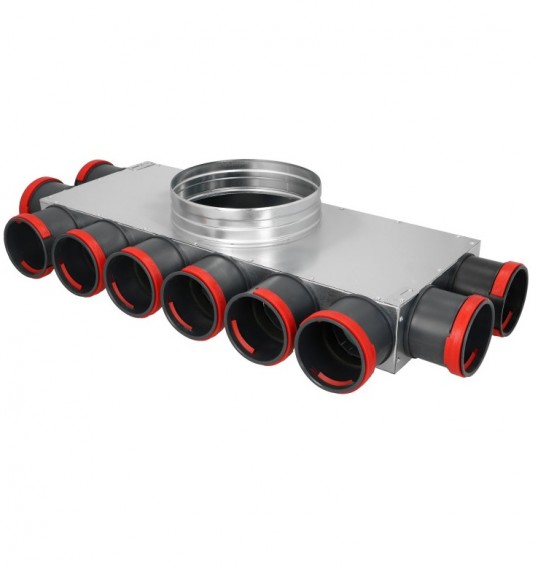

Single-Row Distribution Manifold with 10 Outlets and Plastic Connectors

The PK series distribution manifold is a functional component of mechanical ventilation systems designed for air routing and balancing. The device ensures air distribution from the main duct to ten 75mm flexible ducts, maintaining stable pressure within the ventilation network.

The housing is made of galvanized steel, providing high rigidity and corrosion resistance, suitable for installation in concrete screeds or behind suspended ceilings. A key feature of the manifold is the use of high-impact plastic connectors, which accelerate the installation process and ensure a tight fit for the ducts.

To protect against condensation and reduce acoustic noise, an insulated version (index I) is available. These models utilize an internal layer of synthetic rubber as insulation. This material has high hygienic properties and does not release fibers into the transported air.

Design Features:

• Plastic Connectors: The connector design includes a specialized end seal, achieving high airtightness without the need for additional sealing tapes.
• Mechanical Fixation: Integrated locking elements (latches) prevent accidental disconnection of flexible ducts during construction work or operation.
• Low-Profile Design: The linear arrangement of ten outlets maintains a minimum housing height, making it ideal for installation in limited ceiling spaces.
• Durable Insulation: The use of rubber insulation in insulated models prevents moisture accumulation and the growth of microorganisms inside the housing.
• Mounting Elements: The housing is equipped with mounting lugs for secure attachment to building structures.

Technical Specifications:

• Housing Material: Galvanized steel
• Connector Material: High-impact plastic
• Insulation Material: Synthetic rubber (for 'I' index models)
• Number of Duct Outlets: 10
• Connector Layout: Single-row
• Duct Connection Diameter (d2): 75 mm
• Main Connection Diameter (d1): 160 mm or 200 mm
• Overall Dimensions (LxWxH): 563 x 191 x 82 mm (for d1=160 mm), 563 x 221 x 82 mm (for d1=200 mm)
• Compatibility: 75 mm round flexible ducts
