Product Description

The facade ventilation grille (louvered) is the finishing element of supply and exhaust ventilation systems. It is installed on the outlets of round or rectangular air ducts on the exterior of the building. The main task of the grille is to protect the ventilation shaft from precipitation (rain, snow), birds, rodents, and large debris, without hindering the free passage of air.

The design features rigidly fixed blades (louvers) at a 45-degree angle, creating a reliable barrier against water. By default, the product is equipped with a galvanized protective mesh with a 13x13 mm cell size.

Key Features

• Protection and durability: The grille is made of corrosion-resistant materials, guaranteeing a long service life even in the aggressive climate of Latvia.
• Facade aesthetics: We can paint the grille in any color according to the RAL catalog (powder coating) so that it fits perfectly into the architectural appearance of the building.
• Individual production: SIA Akvilon produces grilles of any size — from standard 100x100 mm to industrial 2000x2000 mm.
• Easy installation: The lightweight design allows you to quickly fix the grille to the facade or directly to the air duct.

Technical Specifications and Dimensions

*Production of intermediate sizes and rectangular shapes is available upon request. Production time is 5-15 working days for non-standard items.

Materials and execution:

• Galvanized steel: grade DX51+Z275.
• Coated steel: PE, PUR, PUR-MATT, PVC.
• Stainless steel: AISI 304, AISI 316, AISI 430.
• Aluminum: available as an option.
• Coating: Powder painting in the selected color.
• Metal thickness: 0.5 – 1.0 mm.
• Connection types: Insert into duct, surface mounted on facade, flange connection (20, 30, 40 mm).
• Certification: CE, EN 1505:2000.

Geometry:

• Installation tolerance (W-5/H-5): The actual seating size of the grille is made 5 mm smaller than the nominal opening size. This ensures easy installation of the product into the duct.
• Insertion depth: 60 mm.
• Frame width (flange): 40 mm (reliably covers the joint with the facade).
• Blade pitch: 50 mm.

Aerodynamic characteristics (pressure drop)

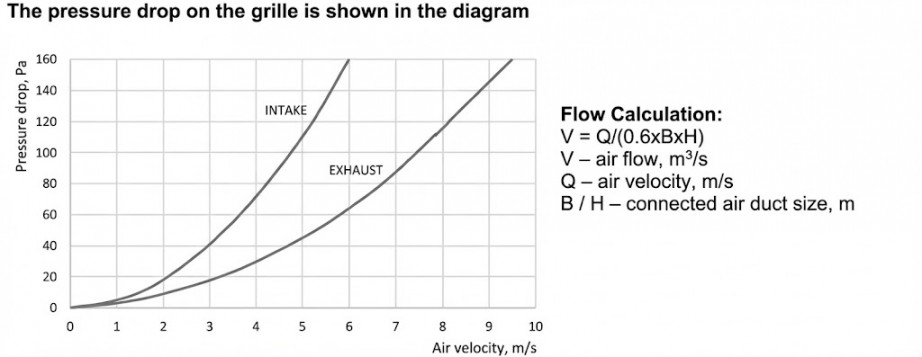

Pressure drop graph depending on air velocity:

Application and Installation Recommendations

• Purpose: Intake of fresh air and Exhaust of stale air.
• Adjustment: This model does not have air flow adjustment (blades are fixed). If adjustment is required, installing an additional rectangular damper behind the grille is recommended.
• Additional options: Upon request, installation of a mosquito net (for protection against insects) and preparation of mounting holes in the frame is possible, for which appropriate mounting elements may be needed.
