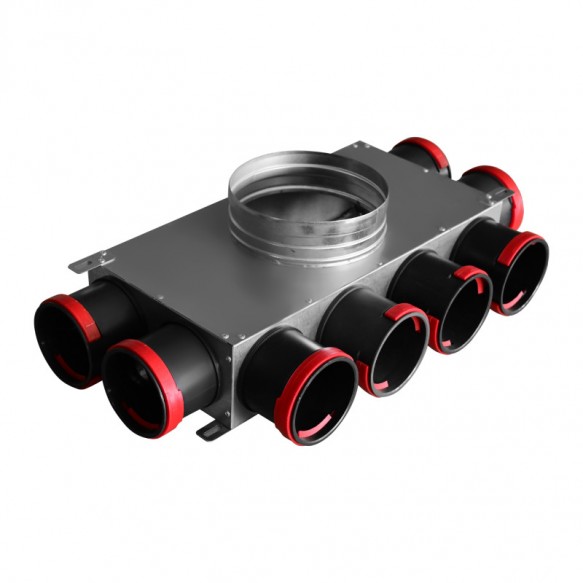

Single-Row Distribution Manifold with 8 Outlets and Plastic Connectors

The PK series distribution manifold is designed for air distribution in mechanical ventilation systems. This component facilitates the transition from the main duct to eight 75mm flexible channel lines, ensuring balanced air distribution throughout the rooms.

The housing is made of galvanized steel, providing high corrosion resistance and the mechanical strength required for installation in concrete screeds or suspended ceilings. A key design feature is the use of high-impact polymer connectors, which simplify assembly and guarantee reliable connections.

To prevent condensation and reduce noise levels within the system, an insulated version (index I) is available. These models feature an internal insulation layer made of synthetic rubber, known for its high hygienic properties and effective acoustic vibration damping.

Design Features:

• Plastic Connectors: Equipped with a specialized end seal that achieves high airtightness without the need for additional sealing tapes.
• Mechanical Fixation: The connector design includes integrated locking latches that securely hold the duct in place, preventing displacement during concrete pouring or system operation.
• Compact Form Factor: The linear arrangement of eight outlets allows for installation in limited spaces, including narrow ceiling niches.
• Durability: The combination of galvanized steel and high-grade plastic ensures a long service life in variable humidity conditions.
• Mounting Elements: The housing features integrated mounting lugs for secure attachment to building structures.

Technical Specifications:

• Housing Material: Galvanized steel
• Connector Material: High-impact plastic
• Insulation Material: Synthetic rubber (for 'I' index models)
• Number of Duct Outlets: 8
• Connector Layout: Single-row
• Duct Connection Diameter (d2): 75 mm
• Main Connection Diameter (d1): 160 mm or 200 mm
• Overall Dimensions (LxWxH): 373 x 191 x 82 mm (for d1=160 mm), 373 x 221 x 82 mm (for d1=200 mm)
• Compatibility: 75 mm round flexible ducts
