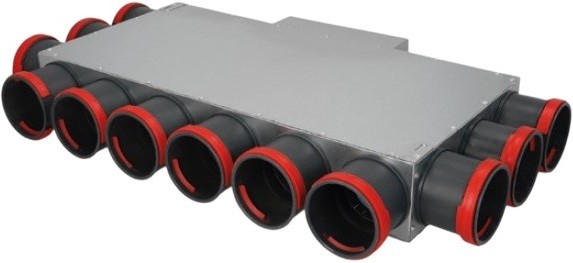

One-row straight flow manifold PK with rectangular outlet (12 nozzles).

One-row straight flow manifold PK with plastic nozzles with lock and with rectangular outlet (12 nozzles) is a ventilation system element used to distribute and control airflow from one duct to several smaller ducts. It has a flat design with a single row of connections, allowing it to be installed in areas where space is limited. In addition, the manifold has a three-dimensional design which allows the air to flow through without the need to reverse direction. One outlet is rectangular.
There are two types of such collectors: standard and insulated.

Main characteristics and usage:

• Air distribution in mechanical ventilation systems: houses, apartments, offices and other buildings.

• Air flow control: with the use of valves or control valves mounted on the nozzles of the manifold.

• Space-saving: due to their flat design with flow distribution, flow collectors take up less space than traditional collectors.

Technical data:
Material: galvanised steel, plastic.
Certificate: All products are CE marked.

Articles and diameters:

Dimensions:




ATTENTION: On request, we can manufacture the connection manifolds to the customer's individual dimensions.
