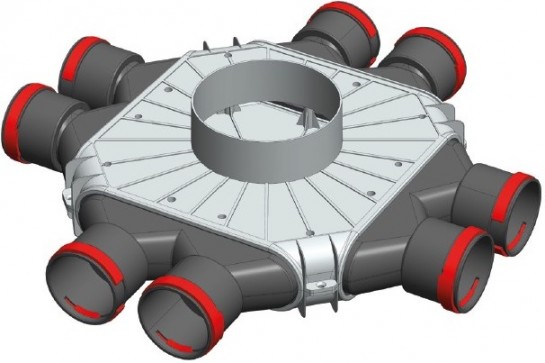

TPK Ventilation Distribution Manifold with 8 Outlets (75/160 mm and 75/200 mm)
The TPK distribution manifold is designed for air flow distribution in mechanical ventilation systems. The manifold is available in two versions: with a central connection diameter of 160 mm or 200 mm. Both versions feature a single housing with eight 75 mm outlets for connecting flexible ducts. The design ensures the division of air from the main duct into eight separate lines with low aerodynamic losses.

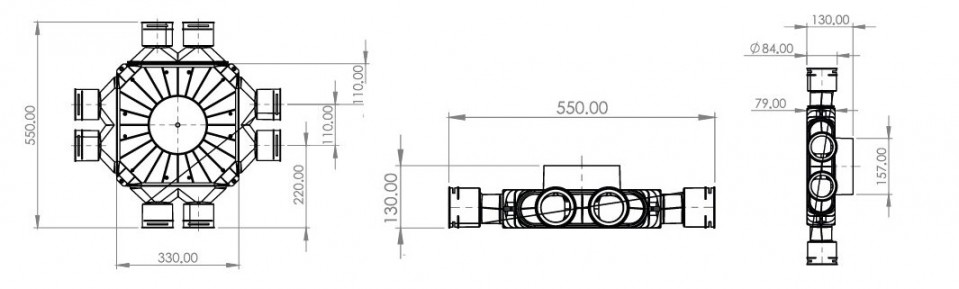

The manifold is made of durable polyethylene. Thanks to its low-profile shape (130 mm housing height), the element is suitable for concealed installation in tight spaces - in concrete floors, walls, or behind suspended ceilings.
