KWT Ventilation Distribution Manifold with 12 Outlets (75/160 mm and 75/200 mm)

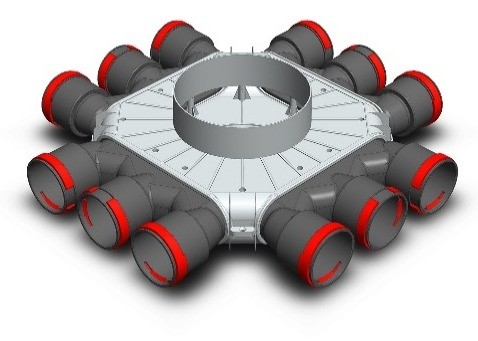

The KWT distribution manifold is designed for air flow distribution in mechanical ventilation systems. The manifold is available in two versions: with a central connection diameter of 160 mm or 200 mm. Both versions feature a single housing with twelve 75 mm outlets for connecting flexible ducts. The design ensures the division of air from the main duct into twelve separate lines with low aerodynamic losses.

The manifold is made of durable polyethylene. The low-profile shape of the element is suitable for concealed installation in tight spaces - in floor screed, monolithic slabs, or behind suspended ceilings.

Application area:

It is used in supply and exhaust ventilation systems (including those with heat recovery) for air distribution in residential buildings, apartments, offices, and other commercial premises.

Design Features:

• Airtight connections: Spigots are equipped with special end seals.
• Mounting: The housing features mounting brackets for convenient fixation to load-bearing surfaces.
• Reserve ports: Unused channels can be hermetically sealed with system plugs.

Technical Specifications:

• Material: Polyethylene (PE)
• Number of duct outlets: 12
• Duct connection diameter: 75 mm
• Central connection diameter: 160 mm or 200 mm
• Certification: CE Marking
