TPK Ventilation Distribution Manifold with 16 Outlets (75/200 mm)

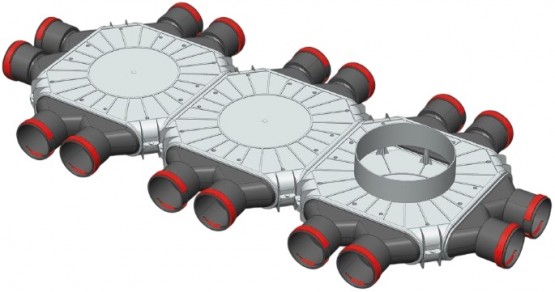

The TPK distribution manifold (three-module cascade design) is designed for centralized air flow distribution in main mechanical ventilation systems. Three modules are integrated into a single unit with one common connection diameter of 200 mm. This configuration allows dividing supply or exhaust air into sixteen independent channels with low aerodynamic losses.

The manifold is made of durable polyethylene. Despite the overall length of the device, the low-profile shape (130 mm height) is maintained, making it suitable for concealed installation in floor screed, monolithic concrete slabs, or behind suspended ceilings.

Application and installation features:

• Centralization of the system: A single distribution point for 16 lines eliminates the need for additional main tees, which simplifies system balancing and reduces the risk of leaks at intermediate connections.
• Airflow optimization: The increased internal volume of the three-module housing helps reduce the flow velocity before entering the 75 mm ducts.
• Installation space requirements: The overall length of the manifold (1210 mm) requires careful planning of engineering niches or free zones in the floors during the building design stage.
• Application: It is used in supply and exhaust ventilation systems for residential buildings and commercial facilities.

Design Features:

• Airtight connections: Spigots are equipped with special end seals.
• Mounting: The housing features mounting brackets for convenient fixation to load-bearing surfaces.
• Reserve ports: Unused channels can be hermetically sealed with system plugs.

Technical Specifications:

• Material: Polyethylene (PE)
• Number of duct outlets: 16
• Duct connection diameter: 75 mm
• Central connection diameter: 200 mm

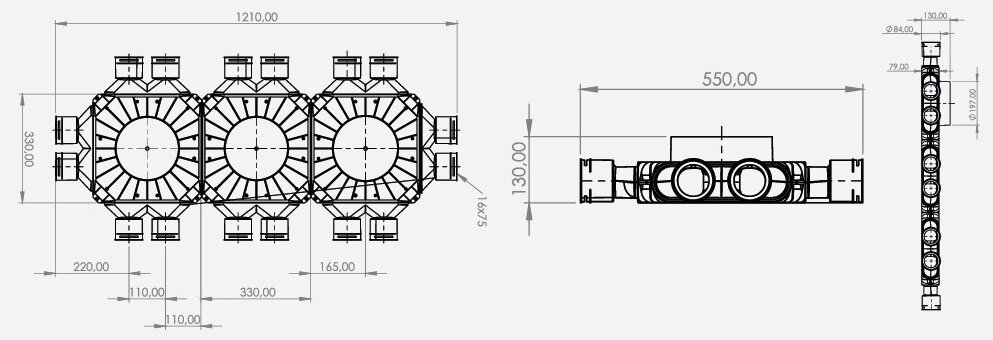

• Overall dimensions (L x W x H): 1210 x 550 x 130 mm
• Certification: CE Marking
