Stainless Steel Chimneys - IZOKOMPAKT


Sort by:
Manufacturer:
Insulated flue pipe 1000mm
Artikuls: DN1000
AKVILON
Izolēta dūmvada caurule 1000mm;Изолированная труба 1000мм;Insulated flue pipe 1000mm. cnt. 0.00 Ls
Insulated flue pipe 500mm
Artikuls: DN500
AKVILON
Izolēta dūmvada caurule 500mm;Изолированная труба 500мм;Insulated flue pipe 500mm. cnt. 0.00 Ls
Insulated flue pipe 250mm
Artikuls: DN250
AKVILON
Izolēta dūmvada caurule 250mm;Изолированная труба 250мм;Insulated flue pipe 250mm. cnt. 0.00 Ls
AKVILON
Konuss - augšējais dūmvada nobeigums;Конус - верхнее окончание дымохода;Insulated tapered terminal. cnt. 0.00 Ls
AKVILON
Izolēts T-gabals 90 ar adapteri;Изолированный тройник 90 с адаптером;Insulated Tee 90 with adapter. cnt. 0.00 Ls
AKVILON
Izolēts T-gabals  45 ar adapteri;Изолированный тройник  45 с адаптером;Insulated Tee 45 with adapter. cnt. 0.00 Ls
Bottom adapter "+"
Artikuls: ADP
AKVILON
Apakšējais adapteris
Bottom adapter "-"
Artikuls: ADM
AKVILON
Apakšējais adapteris
T-piece adapter
Artikuls: ADT
AKVILON
T-gabala adapteris
Insulated end cap
Artikuls: AN
AKVILON
Izolēts noslēgvāks;Изолированная заглушка;Insulated end cap. cnt. 0.00 Ls
Insulated bend 90
Artikuls: LN90
AKVILON
Izolēts līkums 90;Изолированный отвод 90;Insulated bend 90. cnt. 0.00 Ls
AKVILON
Izolēts līkums 90 ar revīziju;Изолированный отвод 90 с ревизией;Insulated bend 90 with inspection door. cnt. 0.00 Ls
Insulated bend 45
Artikuls: LN45
AKVILON
Izolēts līkums 45;Изолированный отвод 45;Insulated bend 45. cnt. 0.00 Ls
Insulated bend 30
Artikuls: LN30
AKVILON
Izolēts līkums 30;Изолированный отвод 30;Insulated bend 30. cnt. 0.00 Ls
AKVILON
Izolēta dūmvada droseļvārsts;Изолированный дроссельный клапан дымохода;Insulated flue throttling valve. cnt. 0.00 Ls
Roof flashings, angled
Artikuls: J20
AKVILON
Izvadi caur jumtu;Проходы через крышу;Roof flashings, angled. cnt. 0.00 Ls
AKVILON
Silikona jumta izvadi;Проходы через кровлю силионовый;Universal roof silicone seals. cnt. 0.00 Ls
Storm collar
Artikuls: JK
AKVILON
Lietus krādziņš;Окапник;Storm collar. cnt. 0.00 Ls
AKVILON
Dekoratīva noslēgplāksne kantaina;Декоративная накладка квадратная;Wall/ceiling plate, rectangular. cnt. 0.00 Ls
AKVILON
Dekoratīva noslēgplāksne apaļā;Декоративная накладка круглая;Wall/ceiling plate, round. cnt. 0.00 Ls
Rain cap,inox
Artikuls: JV
AKVILON
Dūmvada jumtiņš nerūs. tērauds;Шапочка на дымоход, нерж. сталь;Rain cap,inox. cnt. 0.00 Ls
AKVILON
Jumtiņš ar sietu (dzirksteļu slāpētājs);Зонтик с сеткой (Искрогаситель); Rain cap with spark guard. cnt. 0.00 Ls
Locking band
Artikuls: SVI
AKVILON
Savienošanas skavas;Соединительные скобы;Locking band. cnt. 0.00 Ls
Locking band wide
Artikuls: SVP
AKVILON
Savienošanas skavas platās;Соединительные скобы широкие;Locking band wide. cnt. 0.00 Ls
AKVILON
Sienas stiprinājums regulējams;Настенное крепление регулируемое;Wall support, adjustable. cnt. 0.00 Ls
Rafter/ceiling support
Artikuls: SP800
AKVILON
Siju/pārseguma  stiprinājums;Крепление на стропилы/перекрытие;Rafter/ceiling support. cnt. 0.00 Ls
Support band
Artikuls: SK00
AKVILON
Stiprinājuma skava;Скоба для крепления;Support band. cnt. 0.00 Ls
AKVILON
Cietas atsaites dūmvada stiprināšanai virs jumta;Жесткие распорки для крепления дымохода над крышей;Extended roof bracket above roof. cnt. 0.00 Ls
Base support for chimney
Artikuls: SCB
AKVILON
Sienas balsts kronšteins dūmvadam;Опорный кронштейн для дымохода;Base support for chimney. cnt. 0.00 Ls
Chimney support stand
Artikuls: SCK
AKVILON
Dūmvada atbalsta krēsls;Опорный стульчик для дымохода;Chimney support stand. cnt. 0.00 Ls
Console starting plate
Artikuls: SCKTB
AKVILON
Montāžas starta platforma; Монтажная стартовая платформа; Console starting plate. cnt. 0.00 Ls
Fixed wall support
Artikuls: SRFIXST
AKVILON
Fiksēts sienas stiprinājums; Фиксированный стеновой кронштейн; Fixed wall support. cnt. 0.00 Ls
Adjustable wall support, inox
Artikuls: SRREGNER
AKVILON
Regulējams sienas stiprinājums, nerūs;Регулируемый стеновой кронштейн, нерж; Adjustable wall support, inox. cnt. 0.00 Ls
AKVILON
Izolēta dūmvada pārēja; Изолированный переход дымохода; Insulated flue transition. cnt. 0.00 Ls
Terminal with raincap
Artikuls: NNASP
AKVILON
Dūmvada nobeigums ar jumtiņu;Окончание дымохода с зонтом; Terminal with raincap. cnt. 0.00 Ls

IZOKOMPAKT: Versatile and Reliable Sandwich Chimneys

Installation of an IZOKOMPAKT sandwich chimney on a house roof

IZOKOMPAKT is the most popular and versatile series of insulated (twin-wall) chimneys by Akvilon. These triple-layer sandwich systems are the ideal solution for the safe venting of combustion products from any heating appliance in private homes, saunas, cottages, and commercial facilities.

Thanks to its time-tested design and flexibility in material choices, the IZOKOMPAKT system combines maximum fire safety, durability, and the ability to adapt to any design and budget. In addition to the standard 600°C (T600) version, a T450 modification is also available for appliances with lower flue gas temperatures.

Key Features of the IZOKOMPAKT System

  • Reliable and Durable Construction: The inner flue made of acid-resistant stainless steel, a dense layer of non-combustible basalt wool insulation, and a durable welded seam on the outer casing ensure an estimated service life of over 20 years.
  • Universal Application: The system is ideally suited for any heating equipment running on firewood, pellets, gas, or diesel fuel. It is used in private homes, saunas, and commercial properties.
  • Simple and Fast Installation: All elements are connected using a precise "one-into-another" socket system, which guarantees 100% tightness and significantly reduces installation time.
  • Certified Safety: Every component of the system is CE marked and fully complies with the strict requirements of the European fire safety standard EN 1856-1.

Technical Specifications

All elements of the IZOKOMPAKT system are manufactured in strict accordance with the European standard EN 1856-1, confirming their reliability and safety.

Parameter Value
Application Universal chimneys for boilers, fireplaces, and stoves using all types of fuel.
Inner Flue Material Stainless Steel (AISI 304 / AISI 316L)
Outer Casing Options Stainless Steel / Galvanized Steel / Painted Steel (RAL)
Outer Casing Seam Type Welded (TIG)
Insulation High-density non-combustible basalt wool (100 kg/m³).
Insulation Thickness 50 mm.
Steel Wall Thickness From 0.6 mm to 1.0 mm.
Manufacturer's Warranty 10 years.
Certification Complies with EN 1856-1 standard, CE marked.
Temperature Class T600 (nominal operating temp. up to 600°C)
Pressure Class N1 (for negative pressure operation / natural draft)
Condensate Resistance D (for dry operating conditions)
Corrosion Resistance Vm (confirmed resistance of stainless steel)
Sootfire Resistance G (sootfire resistant)
Min. Safe Distance 100 mm (from combustible materials)

Finish and Color Options

A key advantage of the IZOKOMPAKT series is the ability to choose the perfect chimney appearance for any project and budget. We offer three main options for the outer casing:

Coating Types:

  • Stainless Steel: A classic, durable, and universal option that looks harmonious on any building.
  • Galvanized Steel: A practical and the most economical solution that provides reliable protection against corrosion.
  • Painted Steel (RAL): Maximum design freedom. You can order a chimney painted in any of the popular colors from the RAL catalogue to perfectly match your roof or facade.

Professional Turnkey Installation

Our team of certified specialists performs a full range of installation services for IZOKOMPAKT sandwich chimneys, complying with all building codes and fire safety regulations. Trust the professionals.


Frequently Asked Questions (FAQ)

Which IZOKOMPAKT outer casing should I choose? [+]

The choice depends on your priorities and the installation location:

  • Stainless Steel is the most durable and universal option, suitable for all conditions and aesthetically pleasing.
  • Galvanized Steel is the most practical and economical solution. Ideal if the chimney is not a prominent part of the facade or if you need a reliable utilitarian option.
  • Painted Steel (RAL) is the best choice if you need the chimney color to exactly match your roof or facade. The powder coating provides additional protection and an excellent appearance.

Can I use an IZOKOMPAKT chimney for a sauna? [+]

Yes, absolutely. The IZOKOMPAKT system is the ideal and safest solution for saunas and banyas. The thick layer of non-combustible basalt wool insulation provides maximum fire safety, which is critical with the high temperatures of sauna stoves and when passing through wooden structures.

What is the key advantage of a sandwich chimney over a single-wall flue? [+]

The main advantages are safety and versatility. Unlike single-wall flues (which are only intended for installation inside existing brick channels), the IZOKOMPAKT sandwich chimney is a complete, standalone system that can be safely passed through walls and floors made of combustible materials.

How to choose the correct chimney diameter? [+]

The main rule is that the inner diameter of the chimney must not be smaller than the diameter of the flue outlet on your stove, boiler, or fireplace. If in doubt, our specialists can perform a precise calculation to ensure a stable draft and safe operation.

What is the warranty and service life of the system? [+]

We are confident in our product quality and provide a 10-year manufacturer's warranty on all components of the IZOKOMPAKT system. The estimated service life of the sandwich chimney is over 20 years, given proper installation and regular maintenance.


How to Order?

We offer several convenient ways to place an order and flexible payment options. We provide fast and reliable delivery across Latvia and the entire European Union.

How to Order:

  • At our office & warehouse: Visit us at Mazā Rencēnu 6, Riga. Our specialists will consult you, help with your choice, and find the optimal technical solution. You can receive your order immediately.
  • Via our online store: Visit our online shop at shop.akvilon.eu, select the necessary components, and place an order for delivery.
  • By e-mail: Send your list of required items, a sketch, or a project, along with your contact details, to info@akvilon.lv.
  • Via WhatsApp: Message us at +371 26336845. You can send a photo or a specification, and our manager will quickly calculate the cost.

Payment Options:

  • Bank transfer: Payment via an issued invoice.
  • Cash or credit card: Upon receipt of the goods or on-site at our warehouse. A receipt and all necessary documents are provided with every purchase.
  • For legal entities: Payment based on a contract.

Delivery Methods and Times

  • Door-to-door delivery: Receive your order directly at the specified address — whether it's an apartment entrance, a warehouse, or a private home. Each order includes a tracking number to monitor shipment status on the carrier's website.
  • Within Latvia: 1–3 business days from dispatch.
  • Within the EU: 5–10 business days (depending on the destination region).
  • Self-pickup: You can always collect your order directly from our warehouse in Riga.

Diagrams, Manuals, and Documentation

Here you will find all the necessary technical materials for the proper planning and installation of the IZOKOMPAKT chimney system.

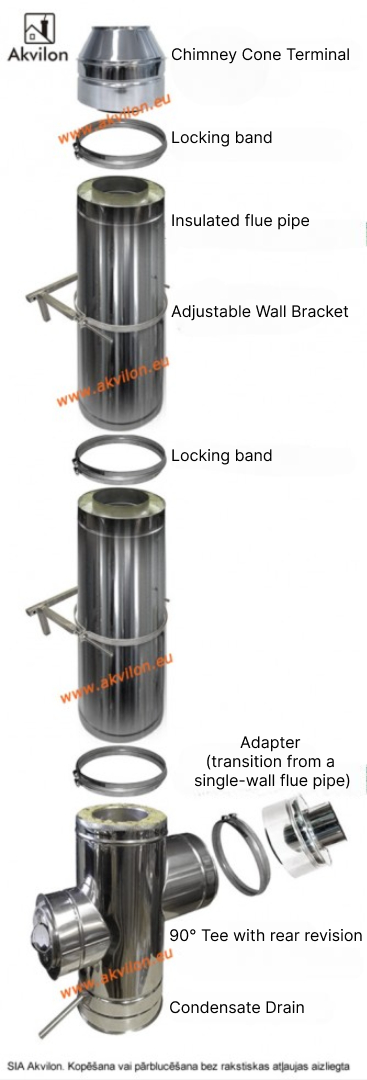

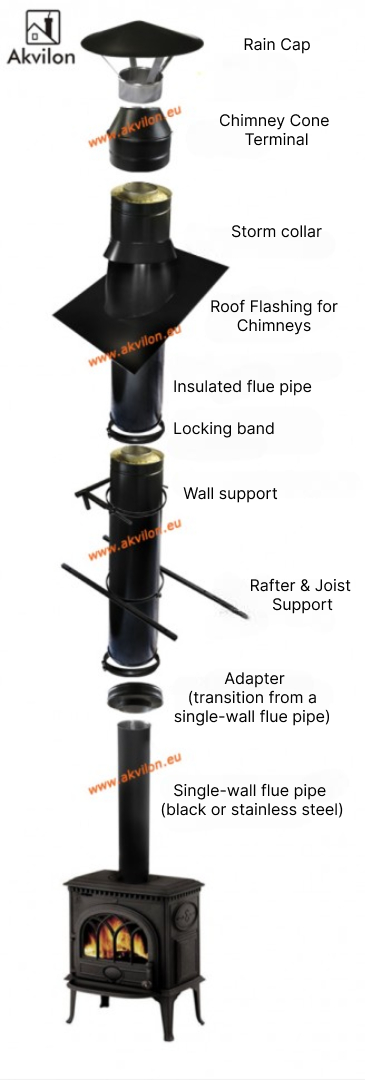

Connection diagram for insulated chimney elements Example of a complete chimney system for a fireplace

Quality Assurance and Certification

CE Mark

All our products are certified according to the EN 1856-1 standard. This is your guarantee of safety and longevity. You can review the documentation at the link below.
