Double-row straight flow manifold GM (16 nozzles).

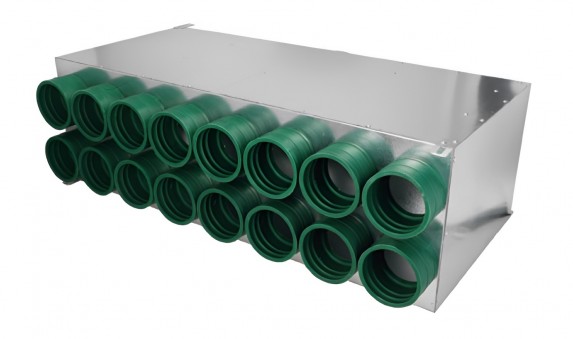

A double-row straight-through manifold GM with rubber nozzles (16 nozzles) is a ventilation system element used to distribute and control airflow from one duct to several smaller ducts. It has a flat design with two rows of connections, allowing it to be installed in areas where space is limited. In addition, the two-row manifold has a three-dimensional design which allows air to flow through without the need to reverse direction.
There are two types of such collectors: standard and insulated.

Main characteristics and usage:

• Air distribution in mechanical ventilation systems: houses, apartments, offices and other buildings.

• Air flow control: by means of valves or control valves mounted on the nozzles of the manifold.

• Space-saving: thanks to their flat design with flow distribution, flow collectors take up less space than traditional collectors.


Technical data:
Material: galvanised steel
Certificate: All products are CE marked.

Articles and diameters:

Dimensions:

ATTENTION: On request, we can manufacture the connection manifolds to the customer's individual dimensions.
