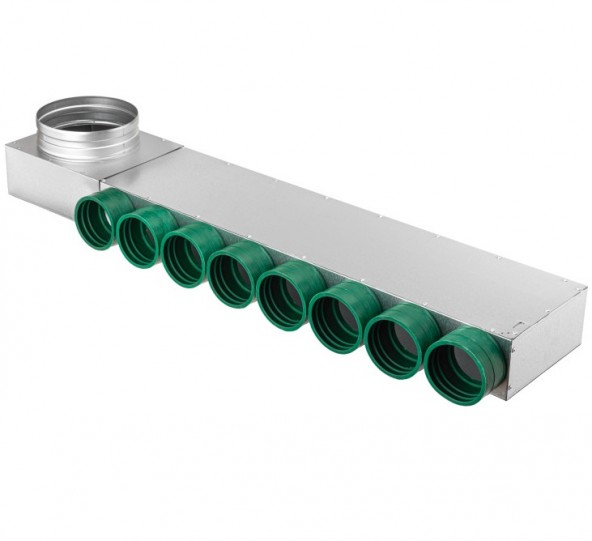

One-row straight flow manifold GM with left-right turnout (8 nozzles).

One-row straight flow manifold GM with left-right turnout with rubber sockets (8 nozzles) is a ceiling/wall manifold with six outlet connections for installation on the supply and discharge side. The manifold provides air distribution throughout the building from a single location.
There are two types of such manifolds: standard and insulated.

Main characteristics and usage:

• Air distribution in mechanical ventilation systems: houses, apartments, offices and other buildings.

• Air flow control: by means of valves or control valves mounted on the nozzles of the manifold.

• Space-saving: due to their flat design with flow distribution, flow collectors take up less space than traditional collectors.

Technical data:
Material: galvanised steel
Certificate: All products are CE marked.


Articles and diameters:

Dimensions:




ATTENTION: On request, we can produce connection manifolds to customer's individual dimensions.
