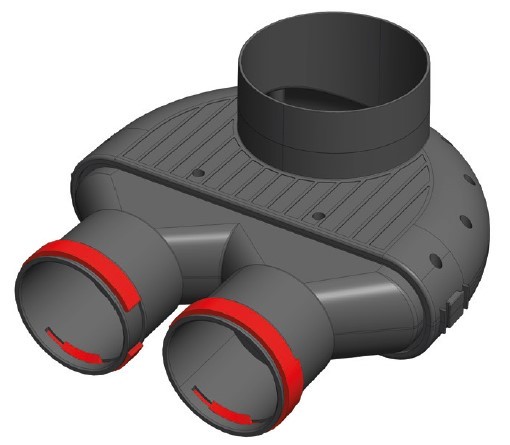

The TPK plenum box is designed for air flow distribution and connecting ventilation diffusers to the flexible duct system. The housing is made of durable polyethylene, ensuring long-term reliability of the structure.
The low-profile shape (housing height 130 mm) is suitable for concealed installation in confined spaces — in floor screeds, monolithic floor slabs, or behind suspended ceilings
Design Features:
Connection tightness: Spigots are equipped with special end seals.
Modularity: The design allows configuring the system for specific project requirements.
Mounting: The housing features mounting brackets for convenient fixation to load-bearing surfaces.
Reserve ports: Unused channels can be hermetically sealed with system plugs.
Technical Specifications:
Material: Polyethylene (PE)
Number of duct outlets: 2 (side arrangement)
Duct connection diameter: 75 mm
Diffuser connection diameter: 125 mm

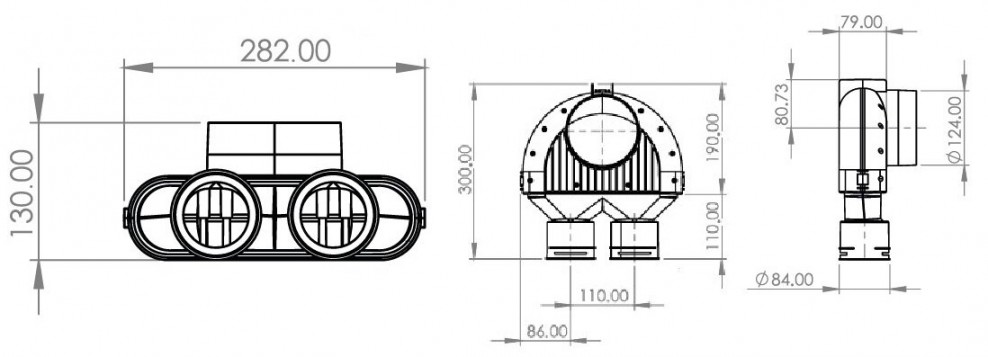

Overall dimensions (L x W x H): 300 x 282 x 130 mm
Compatibility: Flexible duct systems (including VENT-FLEX PREMIUM PLUS)
Certification: CE Marking
Articles and Diameters:
D (mm)
75/125
Article
PRSK2X75125TPK
