HAVACO ICS-EC Ultra-Quiet EC Fans 150–250 mm
Series Overview
The HAVACO ICS-EC series comprises ultra-quiet, high-performance in-line fans with EC motors. The key feature of this series is the 45mm noise-absorbing foam inside the housing, which ensures exceptionally low operating noise levels.
The housing is manufactured from powder-coated steel sheet. The design allows for ceiling mounting, making these fans the ideal choice for installations where acoustic comfort is critical.
Key Features
- Ultra-Quiet Operation: Thanks to thick sound-absorbing material, noise levels are just 41–48 dB — quieter than normal conversation.
- EC Motor: Electronically commutated motor with automatic thermal protection. The unit resets automatically in case of overheating. Protection class IP44, insulation class B.
- Control: Smooth speed regulation across the full range (0–100%) via 0-10V analogue signal. High efficiency maintained at all operating speeds.
- High Pressure: Powerful output (up to 805 Pa) enables use in systems with high duct resistance.
- Application: Perfect for apartments, offices, shops, hotels, and healthcare facilities where low noise levels are essential.

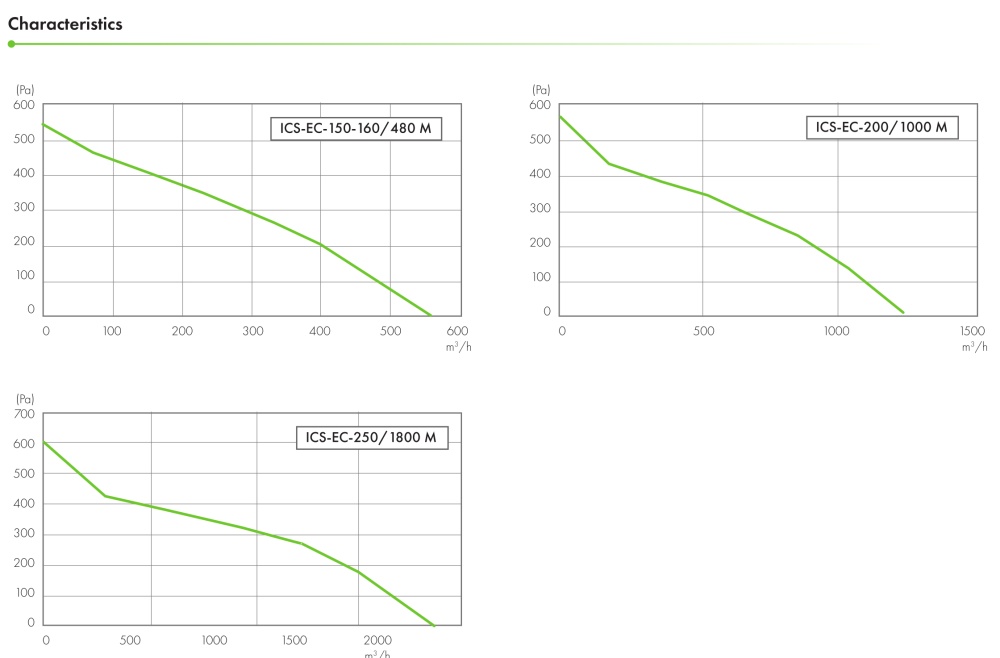

Technical Specifications
Performance data shown at maximum output (10V control signal).
HAVACO ICS-EC Model Range
| Model |
Ø (mm) |
Air Volume
(m³/h) |
Power
(W) |
Current
(A) |
Pressure
(Pa) |
Noise*
(dB) |
Weight
(kg) |
| ICS-EC-150-160/480 M |
150/160 |
480 |
42 |
0.80 |
583 |
41 |
4.8 |
| ICS-EC-200/1000 M |
200 |
995 |
90 |
1.40 |
656 |
47 |
7.9 |
| ICS-EC-250/1800 M |
250 |
1764 |
175 |
1.60 |
805 |
48 |
11.9 |
* Sound level measured in a room from a distance of 3 metres.
Installation Guidelines
- Speed Control: Requires a 0-10V potentiometer (e.g. HAVACO HMTP) or any external controller with 0-10V output.
- Operating Temperature: Designed for air temperatures ranging from -20°C to +60°C.
