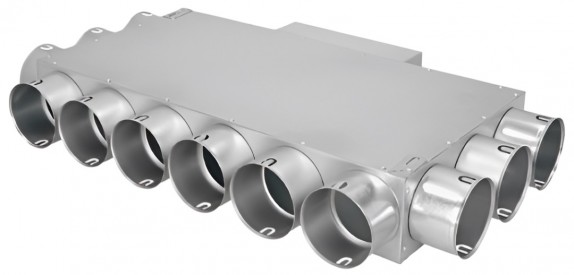

One-row straight flow manifold OC with rectangular outlet (12 nozzles).
One-row straight flow manifold OC with rectangular outlet (12 nozzles) is a ventilation system element used to distribute and control airflow from one duct to several smaller ducts. It has a flat design with a single row of connections, allowing it to be installed in areas where space is limited. In addition, the manifold has a three-dimensional design which allows the air to flow through without the need to reverse direction. One outlet is rectangular.
There are two types of such collectors: standard and insulated.
Main characteristics and usage:
-
Air distribution in mechanical ventilation systems: houses, apartments, offices and other buildings.
-
Air flow control: with the use of valves or control valves mounted on the nozzles of the manifold.
-
Space-saving: due to their flat design with flow distribution, flow collectors take up less space than traditional collectors.
Technical data:
Material: galvanised steel
Certificate: All products are CE marked.
Articles and diameters:
| |
standard |
standard |
insulated |
insulated |
| D (mm) |
75/200x50 |
75/200x90 |
75/200x50 |
90/200x90 |
| Article |
PRSK12XR7520050 |
PRSK12XR7520090 |
PRSK12XR7520050I |
PRSK12XR7520090I |
| Availability |
on request |
on request |
on request |
on request |
Dimensions:
ATTENTION: On request, we can manufacture the connection manifolds to the customer's individual dimensions.
