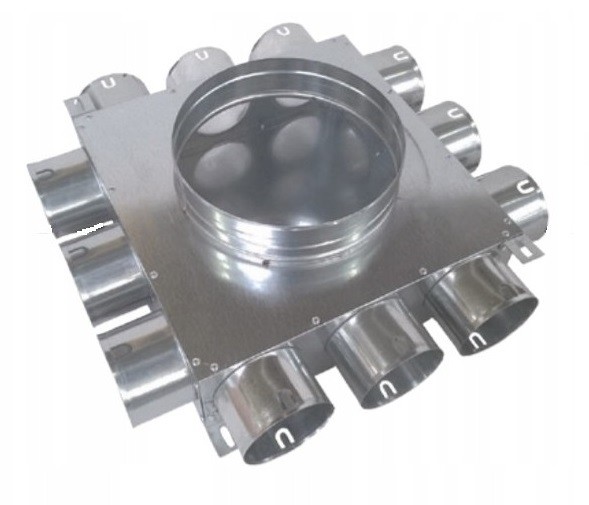

One-row square straight flow manifold OC (12 nozzles).
A single-row square straight-through manifold OC (12 nozzles) is a ventilation system element used to distribute and control airflow from one duct to several smaller ducts. It has a flat design with a single row of connections, allowing it to be installed in areas where space is limited. In addition, the manifold has a three-dimensional construction which allows the air to flow through without the need to reverse direction.
Main characteristics and usage:
-
Air distribution in mechanical ventilation systems: houses, apartments, offices and other buildings.
-
Compact design: the flat profile allows installation in limited spaces.
-
Air distribution: due to the appropriate design and positioning of the nozzles, the distributor ensures an even air flow to all connected pipes.
-
Aesthetic appearance: the flat shape and the possibility of ceiling or wall mounting make the distributor an aesthetic installation element.
-
Space-saving: due to their flat design with flow distribution, flow collectors take up less space than traditional collectors.
Technical data:
Material: galvanised steel
Certificate: All products are CE marked.
Articles and diameters:
| |
standard |
standard |
| D (mm) |
75/160 |
75/200 |
| Article |
PRSK12X75160KW |
PRSK12X75200KW |
| Availability |
on request |
on request |
Dimensions:
ATTENTION: On request, we can produce connection manifolds to customer's individual dimensions.
