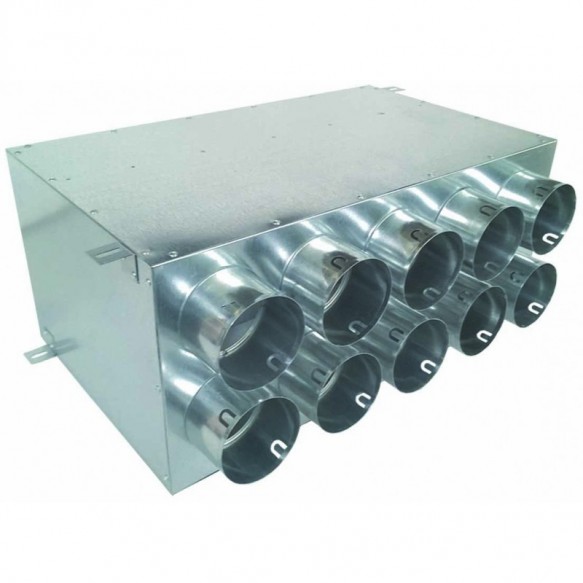

Double-row straight flow manifold OC (10 nozzles).
A double-row straight-through manifold OC (10 nozzles) is a ventilation system element used to distribute and control airflow from one duct to several smaller ducts. It has a flat design with two rows of connections, allowing it to be installed in areas where space is limited. In addition, the two-row manifold has a three-dimensional design which allows air to flow through without the need to reverse direction.
There are two types of such collectors: standard and insulated.
Main characteristics and usage:
-
Air distribution in mechanical ventilation systems: houses, apartments, offices and other buildings.
-
Air flow control: by means of valves or control valves mounted on the nozzles of the manifold.
-
Space-saving: thanks to their flat design with flow distribution, flow collectors take up less space than traditional collectors.
Technical data:
Material: galvanised steel
Certificate: All products are CE marked.
Articles and diameters:
| |
standard |
standard |
standard |
standard |
insulated |
insulated |
insulated |
insulated |
| D (mm) |
75/160 |
75/200 |
90/160 |
90/200 |
75/160 |
75/200 |
90/160 |
90/200 |
| Article |
PRSK10X75160D |
PRSK10X75200D |
PRSK10X90160D |
PRSK10X75200D |
PRSK10X75160DI |
PRSK10X75200DI |
PRSK10X90160DI |
PRSK10X75200DI |
| Availability |
on request |
on request |
on request |
on request |
on request |
on request |
on request |
on request |
Dimensions:
ATTENTION: On request, we can manufacture the connection manifolds to the customer's individual dimensions.
