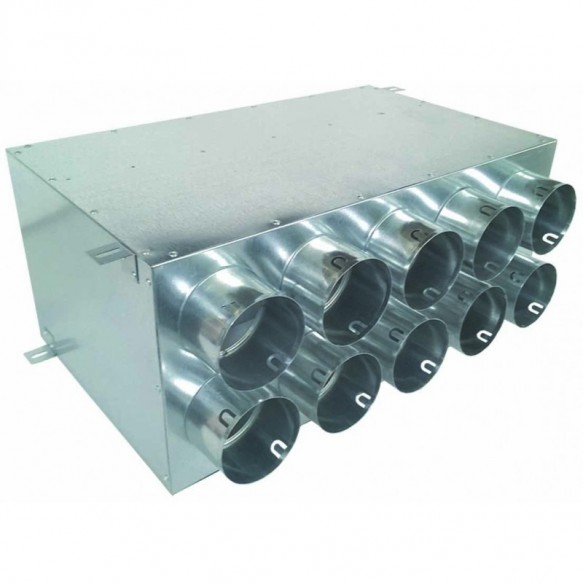

10-Outlet Galvanized Double-Row Plenum Box for Ventilation Systems

The double-row plenum box is designed for uniform airflow distribution in supply and exhaust ventilation systems. This HVAC distribution box provides a reliable transition from the main air duct to a network of flexible air ducts.

The casing is manufactured from galvanized steel, offering corrosion resistance and providing sufficient structural rigidity for standard installation and operating conditions. The compact form factor allows for space-saving installation in suspended ceiling voids, wall niches, or utility rooms.

The insulated version features a dedicated layer of synthetic rubber thermal insulation. This is designed for systems exposed to a risk of condensation, as it effectively prevents moisture accumulation on the casing surface and reduces heat loss during air transport.

Design features:

• Material: Galvanized sheet steel.
• Thermal insulation: Insulated versions (with the 'I' index) are equipped with a protective layer of synthetic rubber.
• Duct connection: The spigots feature locking grooves for secure attachment of the flexible ducts.
• Mounting: The casing is equipped with mounting brackets for attachment to load-bearing structures (ceilings or walls).
• Configuration: 10 spigots are arranged in two rows of 5 on one of the long sides of the casing.

Technical specifications:

• Casing material: Galvanized steel
• Insulation material: Synthetic rubber (where applicable)
• Number of duct outlets: 10 (double-row arrangement)
• Flexible duct connection diameter (d2): 75 mm
• Main connection diameter (d1): 160 mm or 200 mm

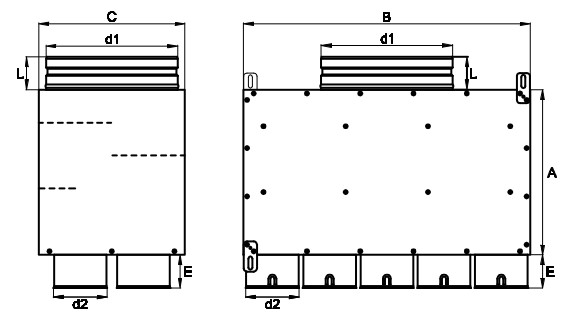

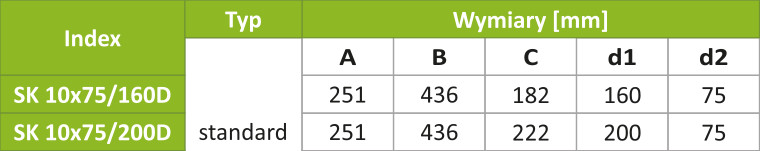

• Dimensions (Length x Width x Height): 436 x 251 x 182 mm (for 160 mm version), 436 x 251 x 222 mm (for 200 mm version)
• Compatibility: Standard systems of round flexible ducts with a 75 mm diameter
