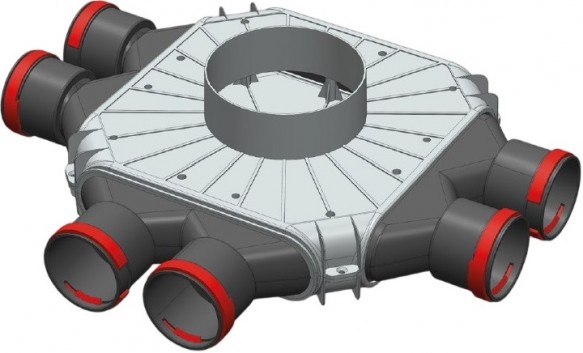

One-row straight flow manifold TPK (6 nozzles).
The TPK one-row straight-through manifold (6 nozzles) with plastic nozzles with lock is a ventilation system element used to distribute and control airflow from one duct to several smaller ducts. It has a flat design with a single row of connections, allowing it to be installed in areas where space is limited. In addition, the manifold has a three-dimensional design which allows the air to flow through without the need to reverse direction.
Main characteristics and usage:
-
Air distribution in mechanical ventilation systems: houses, apartments, offices and other buildings.
-
Air flow regulation: by means of valves or control valves mounted on the manifold nozzles.
-
Space-saving: due to their flat design with flow distribution, flow collectors take up less space than traditional collectors.
Technical data:
Material: plastic.
Certificate: All products are CE marked.
Articles and diameters:
| |
standard |
| D (mm) |
75/160 |
| Article |
PRSK6XTPK75160 |
| Availability |
on request |
Dimensions:
ATTENTION: On request, we can manufacture the connection manifolds to the customer's individual dimensions.
