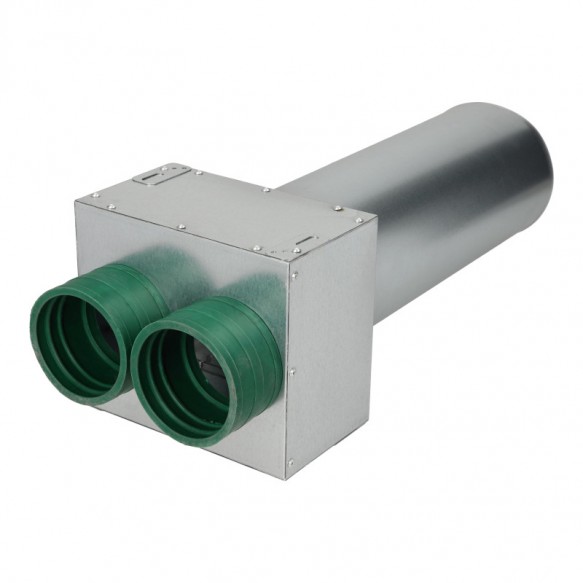

Diffuser plenum box GM (2x straight outlets).
The plenum box GM with rubber nozzles is a ventilation system element used to distribute and control airflow from one duct to several smaller ducts. It is made of galvanised steel sheet and has several connectors with holes for connecting ventilation ducts.
Main characteristics and usage:
-
Air distribution in mechanical ventilation systems: houses, flats, offices and other buildings.
-
Compact design: the plenum box has a small footprint, which makes it easy to install in various locations.
-
Easy installation: nozzles with holes allow quick and easy connection of ventilation ducts.
-
Uniform air distribution: due to the appropriate design and positioning of the connection elements, the air distribution box ensures uniform air flow in all connected ducts.
-
Aesthetically pleasing installation: the plenum box can be concealed in a suspended ceiling or integrated into the wall.
-
Availability: a wide range of models with different parameters and number of connections.
The plenum box is an important element of the ventilation system that ensures uniform air distribution and aesthetic appearance of the installation. When choosing a supply box, it is necessary to pay attention to its technical characteristics and compare them with the needs of the installation.
Technical characteristics:
Material: galvanised steel, rubber.
Certificate: All products are CE marked.
Articles and diameters:
| D (mm) |
75/125 |
90/125 |
| Article |
PRSK1XTGM75125 |
PRSK1XTGM90125 |
| Availability |
on request |
on request |
Dimensions:
ATTENTION: On request we can produce plenum boxes to customer's individual dimensions.
