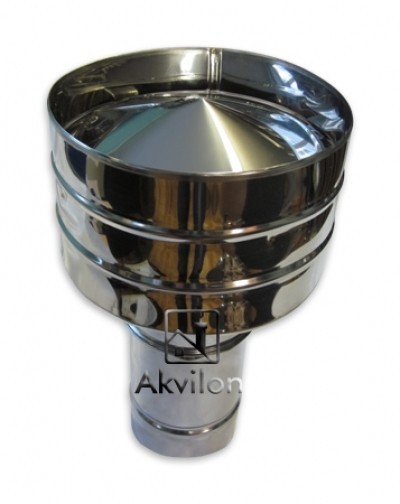

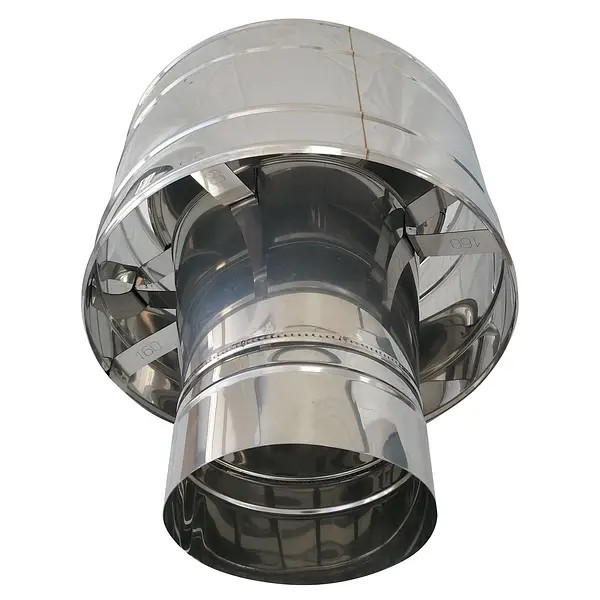

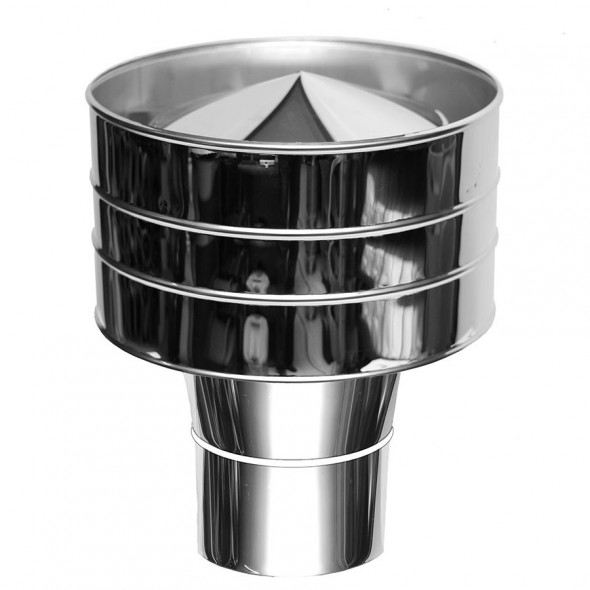

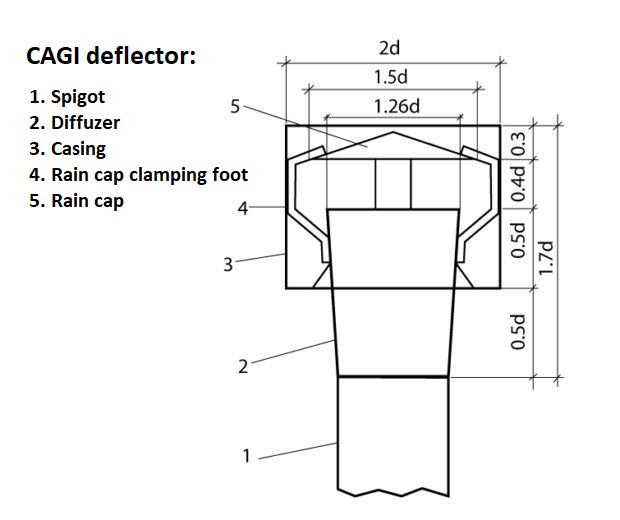

CAGI flue deflector - draught stabilisation and safety

The flue deflector is the most important element of a modern flue system, ensuring safe and efficient operation, protecting the flue from external influences and improving draught stability.

The main functions of the CAGI deflector are:

Protection from precipitation and objects:

• The deflector effectively prevents rain, snow and other foreign objects from entering the flue, extending the life of the flue and reducing the frequency of maintenance.

Draught stabilisation:

• The CAGI deflector is specifically designed to optimise airflow in the flue. It helps to maintain an even draft in all weathers, ensuring efficient operation and safety of the heating system.

Wind protection:

• The CAGI's design allows the deflector to deflect wind currents so they do not affect the chimney's performance. Even in strong winds, the deflector maintains a stable draught, reducing the risk of flue gas return.

Advantages of the CAGI deflector:

• Increased efficiency: ensures maximum efficiency of the heating system, reducing fuel consumption.

• Durability: made of durable and high quality materials that can withstand extreme weather conditions.

• Aesthetic design: modern and attractive appearance that complements the overall architecture of the building.


Usage:
The CAGI deflector is suitable for a wide range of flue types including brick, ceramic and metal. It is particularly recommended in areas with frequent and strong winds where enhanced draft stabilisation is required.

D>200 mm to order within 3-10 working days


Manufacturer: SIA Akvilon
Material: Stainless steel AISI 304L/316L, wall thickness from 0,6 mm.
Diameter range (mm): 80-800
Certificate: CE
