Installation of Single-Wall Chimneys: Insertion into a Brick Flue
Company Akvilon performs lining of brick chimneys using RENOFAST single-wall stainless steel systems. This method involves installing a metal liner inside an existing brick or ceramic chimney. Such a stainless steel liner protects the brickwork from destruction, improves draft, and extends the service life of the entire system. All elements are manufactured in our own production facility in Riga using modern technologies and fully comply with European requirements.
Why choose Akvilon for installation?
- Extensive experience: Over 20 years of experience with chimneys, modern production, qualified personnel.
- Fast installation: Installation takes only 1 day. All work is performed with the utmost care, and upon completion, we thoroughly clean up all construction debris and dust, leaving everything tidy.
- Fast logistics: Most elements are always in stock — we ship on the same day.
- Full certification and compliance with standards: All products are CE-certified and comply with EN 1856-1 and EN 1856-2. We provide all necessary documentation.
- Simplified object acceptance: A lined chimney is easily accepted by regulatory authorities.
- Warranty and insurance: Compliance with insurance company requirements. 10 years warranty provided the installation and maintenance instructions are followed.
- Long service life: If all our recommendations are followed, Akvilon Renofast liners have a service life of at least 20 years, providing you with a durable and reliable solution for your chimney.
- Reinforced solutions:For increased loads, we use chimneys with a wall thickness of up to 1 mm made of acid-resistant AISI-316L stainless steel.
What does the installation service include?
- On-site measurement and consultation
- Design and selection of system components
- Manufacturing of custom solutions (if necessary)
- Preparation and opening of the brick flue: installation of tees and lowering the liner
- Professional installation and sealing with checking all connections
- Connection of equipment: fireplace, boiler, or stove
- Sealing openings and restoring brickwork
- System inspection, sealing, and testing
Additional services
- Upper masonry repair: We perform minor repairs to the upper part of the brick chimney.
- Draft improvement: We solve draft problems, including extending the chimney with an insulated pipe.
- Draft stabilization: We install deflectors and rotary turbo deflectors to protect against wind and improve draft.

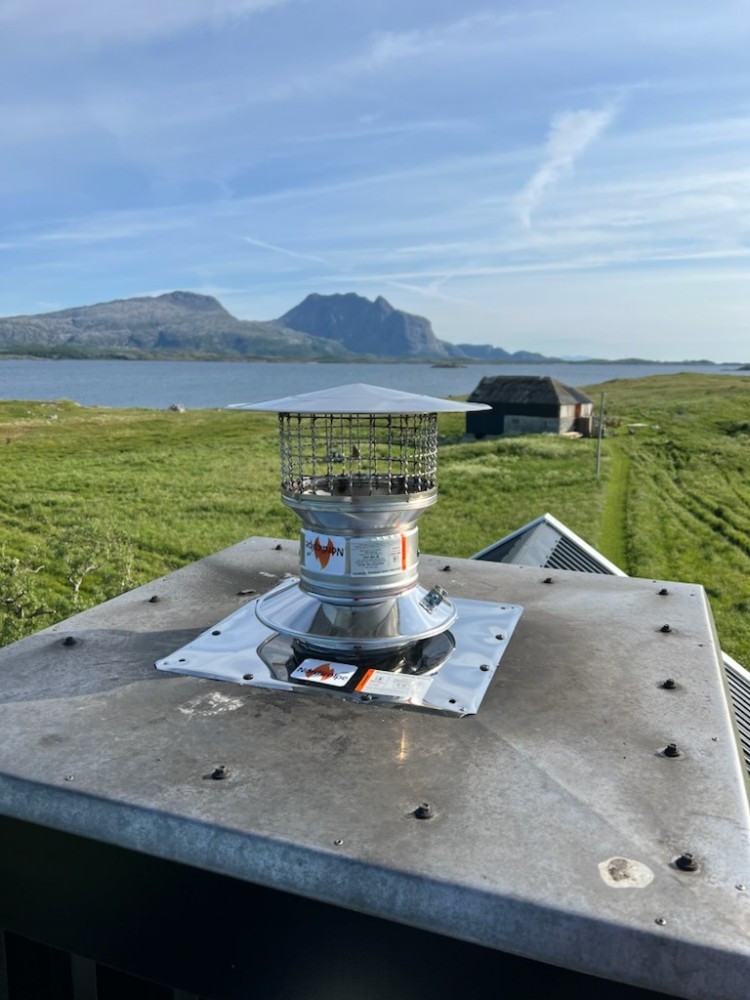

- Protective elements: We manufacture and install decorative and functional rain caps
- Liners for condensing boilers: We install and mount liners specifically designed for condensing boilers, with silicone seals and a temperature class of T200, ensuring compliance with pressure class P1.
Frequently Asked Questions about Installing a Liner in a Brick Chimney
Lining is the process of inserting a pipe inside an existing brick or ceramic chimney. This protects the masonry from the destructive effects of condensate and aggressive combustion products, and also improves draft.
Chimney lining is necessary or highly recommended:
- When connecting modern heating equipment (especially gas and condensing boilers): low-temperature combustion products and the resulting aggressive acidic condensate quickly destroy the brickwork of the chimney from the inside, leading to its failure and loss of airtightness after just a few seasons.
- If the existing brick chimney has damage: cracks, destruction, or insufficient airtightness of an old chimney threatens the safety (risk of carbon monoxide leakage and fire) and efficiency of the entire heating system.
- For improving and stabilizing draft: the smooth surface of the liner optimizes the operation of heating equipment, and also brings the chimney into compliance with modern safety standards and increases its service life.
Typically, the installation of a single-wall chimney takes 1 working day. In complex cases — possibly longer. We estimate the scope of work and deadlines in advance.
Yes, the installation of an Akvilon Renofast chimney insert is entirely possible independently or with the help of experienced installers. Our system has a modular design and is assembled using a simple and reliable socket connection, which significantly simplifies the installation process.
Nevertheless, to ensure the safety and efficiency of the system, it is extremely important to observe the following key points:
- Precise verticality: Ensure strict verticality of the entire chimney system.
- Proper sealing: Ensure a tight and correct socket connection, as well as correct assembly of elements taking into account condensate drainage and assembly direction.
- Fire safety: Strictly observe fire safety distances from walls, ceilings, and other structures.
- Flue ventilation: Organize sufficient ventilation around the chimney flue.
We are always ready to provide you with full support: we will complete all necessary materials for installation and promptly provide detailed instructions. If you have any questions, our specialists are always ready to advise you and explain each step in detail.
You receive: receipts, invoices, and a Declaration of Conformity, confirming the origin of the products and the presence of all necessary certificates. If necessary, we will also provide a Chimney Sweep Act (as a separate service).
No. We have a large stock of standard elements — installation can be performed without delays. If necessary, non-standard elements can be manufactured.
Yes, before inserting a new pipe, it is recommended to clean the flue of soot, debris and possible obstacles. We perform all necessary preparatory work, including eliminating small blockages. If more serious cleaning is required, which is better to entrust to a certified chimney sweep (for example, in case of strong blockages), we can organize this service for you as an additional one.
Yes, for curved flues, flexible liners or segmented elements. We select the optimal solution on site.
We are confident in the quality of Akvilon Renofast liners and provide a 10-year warranty. For its preservation, it is necessary to observe the operating conditions and regular maintenance of the system, as indicated in the instructions (including annual cleaning, checking joint tightness, and having chimney sweep acts).
In addition, all products are covered by a standard 2-year warranty, covering manufacturing defects.
If all our recommendations are followed, the service life of Akvilon Renofast liners is at least 20 years, providing you with a durable and reliable solution for your chimney.
Our experienced managers are ready to answer any technical questions and help with accurate complete set calculation. You can order a free on-site visit from a consulting engineer for measurements (provided a subsequent order is placed). A paid consultation with a visit in Riga and the district costs 40 EUR + VAT, in Latvia – 60 EUR + VAT.
| |
|
|
